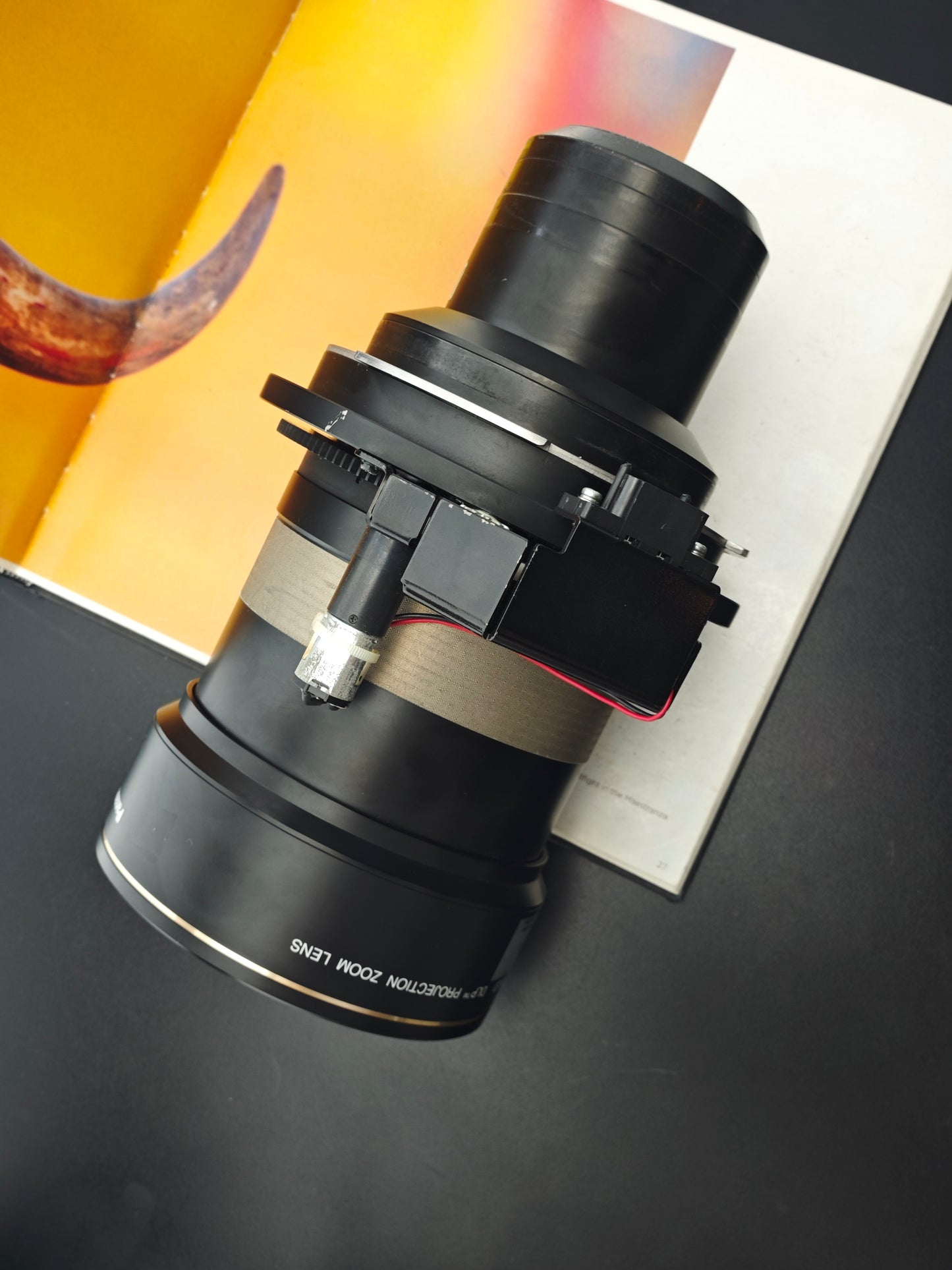

Panasonic ET-D75LE3 DLP Projector Zoom Lens

Panasonic ET-D75LE3 – Zoom Lens Specifications

• Lens Type: Zoom Lens for 3-Chip DLP Projectors

• Compatible Projectors:

  • Panasonic large-venue projectors including models such as PT-D7700, PT-DZ21K, PT-DW17K, PT-DZ13K, PT-RQ32K, PT-RZ31K, and other D7/DZ series (check specific model compatibility)

• Focal Length: 39.6 mm – 51.5 mm

• Throw Ratio:

  • WUXGA / SXGA+ / WXGA: 2.4 – 3.2:1

  • XGA: 2.3 – 3.0:1

  • 4K+ (when applicable): Approx. 2.5 – 3.3:1

• Zoom: Motorized zoom and focus

• Lens Shift: Motorized (dependent on projector model)

• Aperture (F-Stop): f/2.5 – f/3.1

• Screen Size Compatibility: Varies based on projector and distance

• Mount Type: Bayonet mount for quick swapping

• Weight: Approx. 2.4 kg (5.3 lbs)

Description

The Panasonic ET-D75LE3 is a high-performance motorized zoom lens designed for large-venue and installation-grade 3-chip DLP projectors. With a throw ratio of 2.4–3.2:1, it is ideal for medium to long-distance projection in auditoriums, stadiums, convention halls, and other large environments.

Its motorized zoom and focus functions allow for precise and convenient adjustment remotely, making it well-suited for setups where frequent lens changes or recalibration are necessary. The lens supports motorized lens shift (vertical and horizontal), ensuring flexibility in projector placement without distorting the image.

Thanks to Panasonic’s precise optical engineering, the ET-D75LE3 delivers excellent edge-to-edge clarity and brightness uniformity, making it ideal for both HD and high-brightness applications.

Serial Number: 82959
SKU: UN-31-3323

Condition:
- Lens is functioning properly

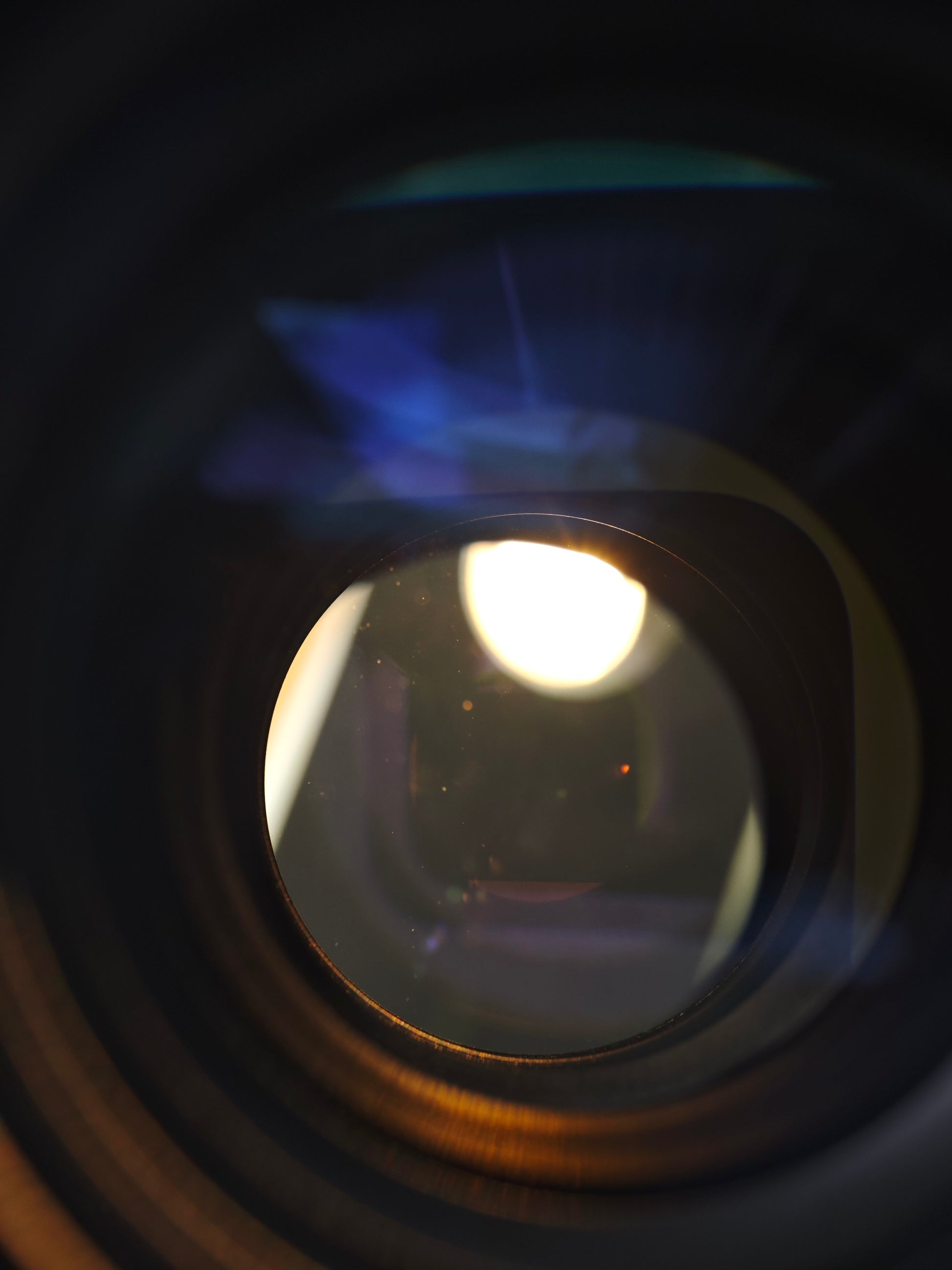

- Lens is free from fungus and haze, with a small amount of dust

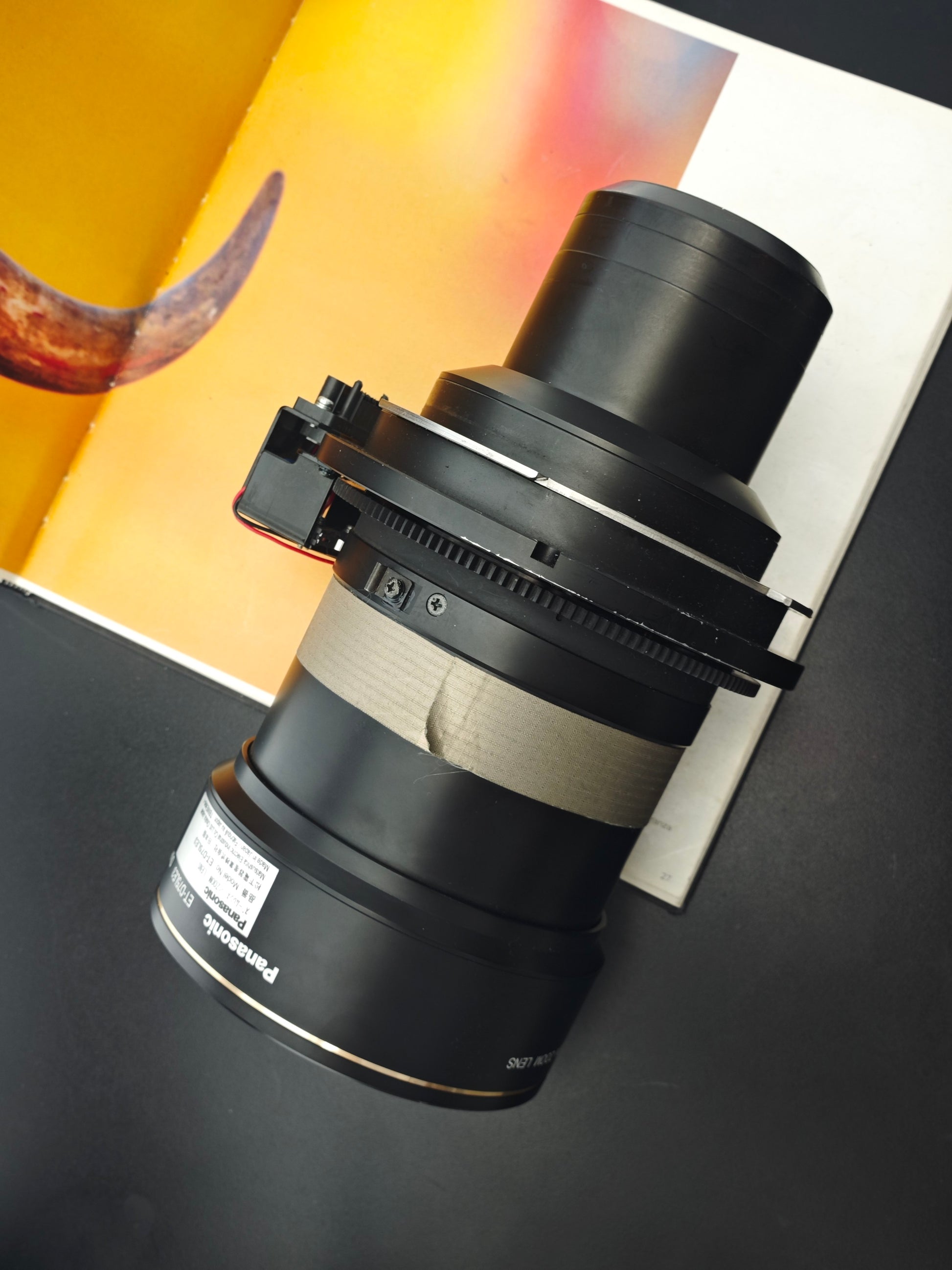

- Lens body has noticeable scratches and scuff marks

- เลนส์ทำงานปกติ
- เลนส์ ไม่มีรา ไม่มีฝ้า มีฝุ่นเล็กน้อย
- สภาพตัวเลนส์ มีรอยขีดข่วน และรอยถลอกชัดเจน
