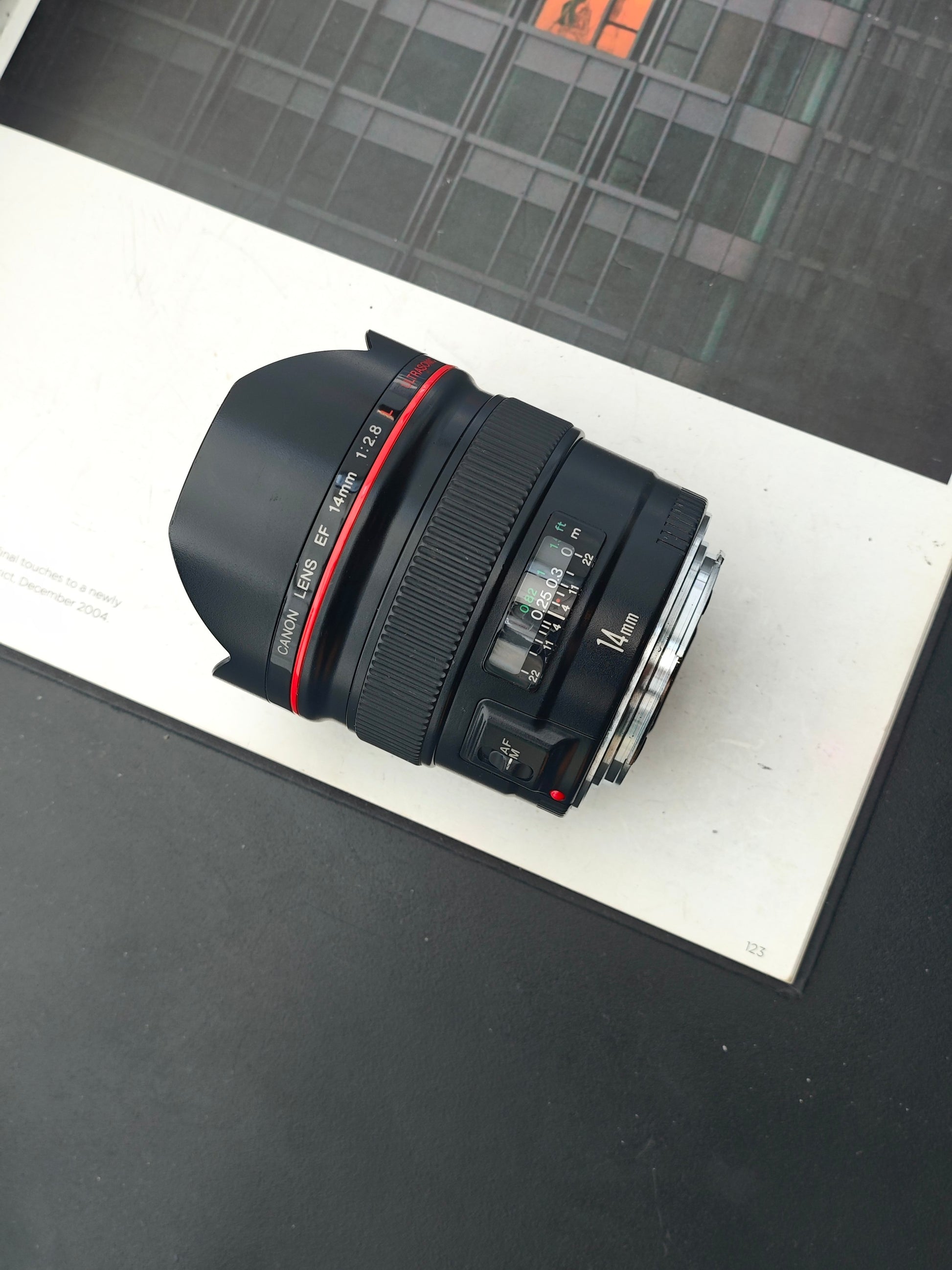

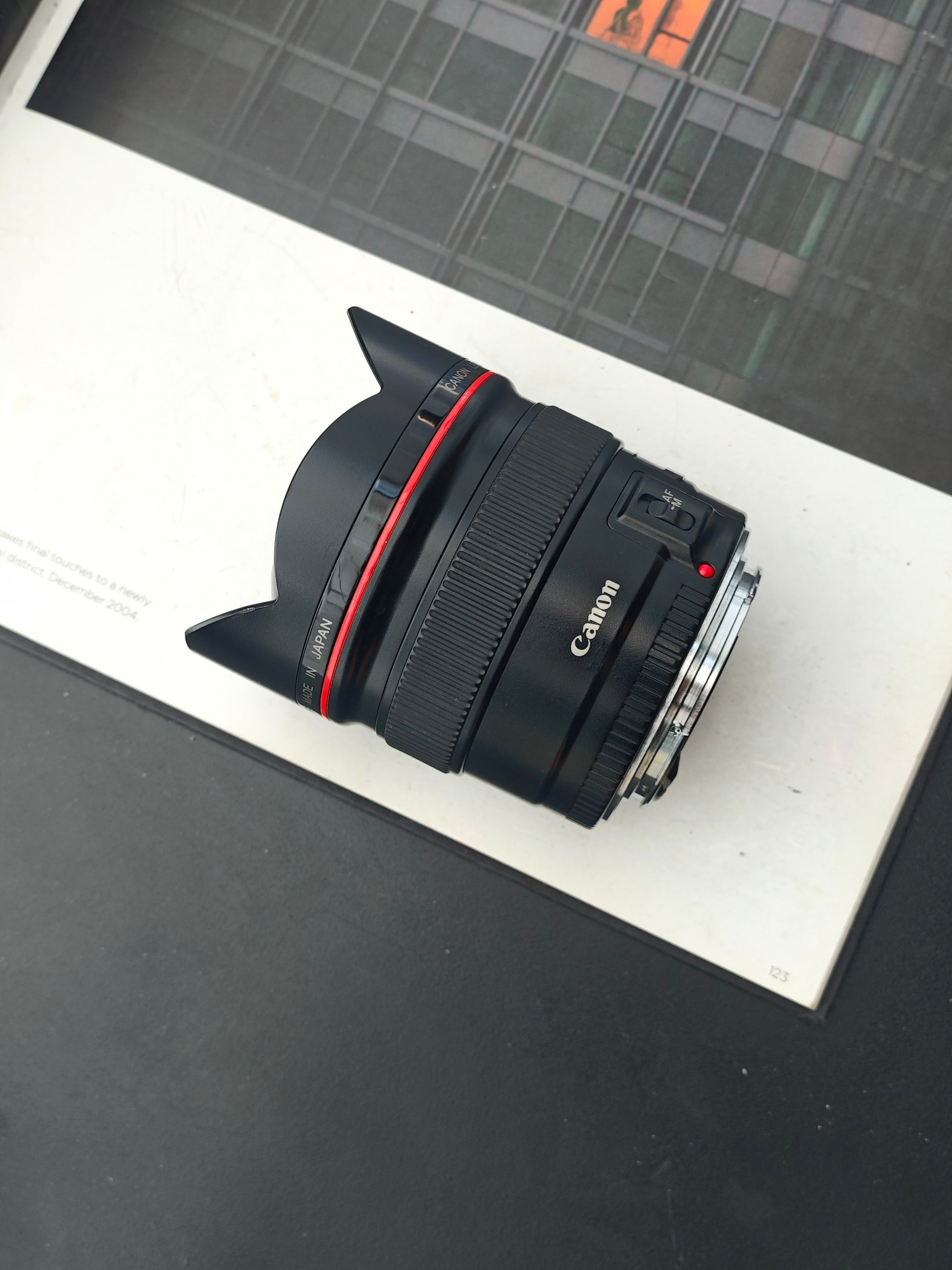

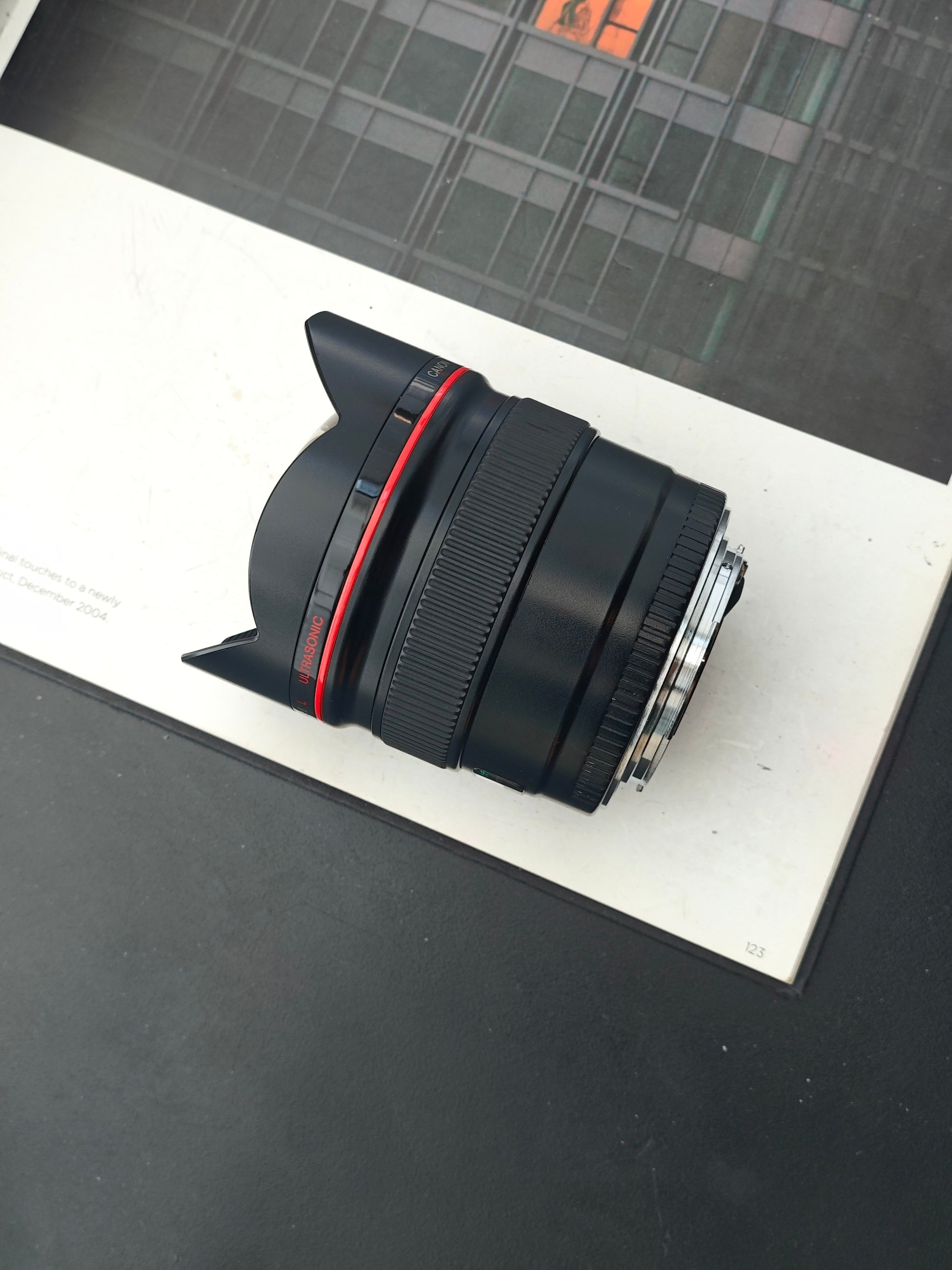

Canon Lens EF 14mm F2.8 L Ulrasonic

Canon EF 14mm f/2.8L USM – Specifications

• Type: Ultra-wide-angle prime lens (EF mount, full-frame coverage)

• Focal Length: 14 mm

• Maximum Aperture: f/2.8

• Minimum Aperture: f/22

• Lens Construction: 13 elements in 10 groups (including 1 aspherical element)

• Angle of View (Full Frame): 114° (diagonal) / 104° (horizontal) / 81° (vertical)

• Diaphragm Blades: 5

• Minimum Focusing Distance: 0.25 m (0.82 ft)

• Maximum Magnification: 0.10×

• Autofocus Drive: Ring-type USM (Ultrasonic Motor) with full-time manual focus override

• Filter System: No front filter thread (due to large convex front element); rear gelatin filter holder

• Dimensions (Diameter × Length): Approx. 77 mm × 89 mm (3.0 × 3.5 in)

• Weight: Approx. 560 g (1.23 lb)

• Hood: Built-in fixed petal-type

• Compatible Cameras: All Canon EF-mount film and digital SLRs, including full-frame and APS-C (effective focal length ~22 mm on APS-C)

Description

The Canon EF 14mm f/2.8L USM is a professional-grade, ultra-wide-angle prime lens in Canon’s prestigious L-series lineup. Offering an expansive 114° diagonal field of view on full-frame cameras, it allows photographers to capture dramatic perspectives, making it ideal for architecture, interior photography, landscapes, and astrophotography.

Its bright f/2.8 maximum aperture provides versatility in low-light situations and the ability to shoot handheld in dim environments. The lens design incorporates aspherical elements to control distortion and enhance sharpness across the frame.

The ring-type Ultrasonic Motor (USM) ensures fast, precise, and nearly silent autofocus, with full-time manual focus override for fine adjustments. The lens features a rugged metal body with weather-resistant L-series construction, and an integrated petal-shaped hood to help reduce flare.

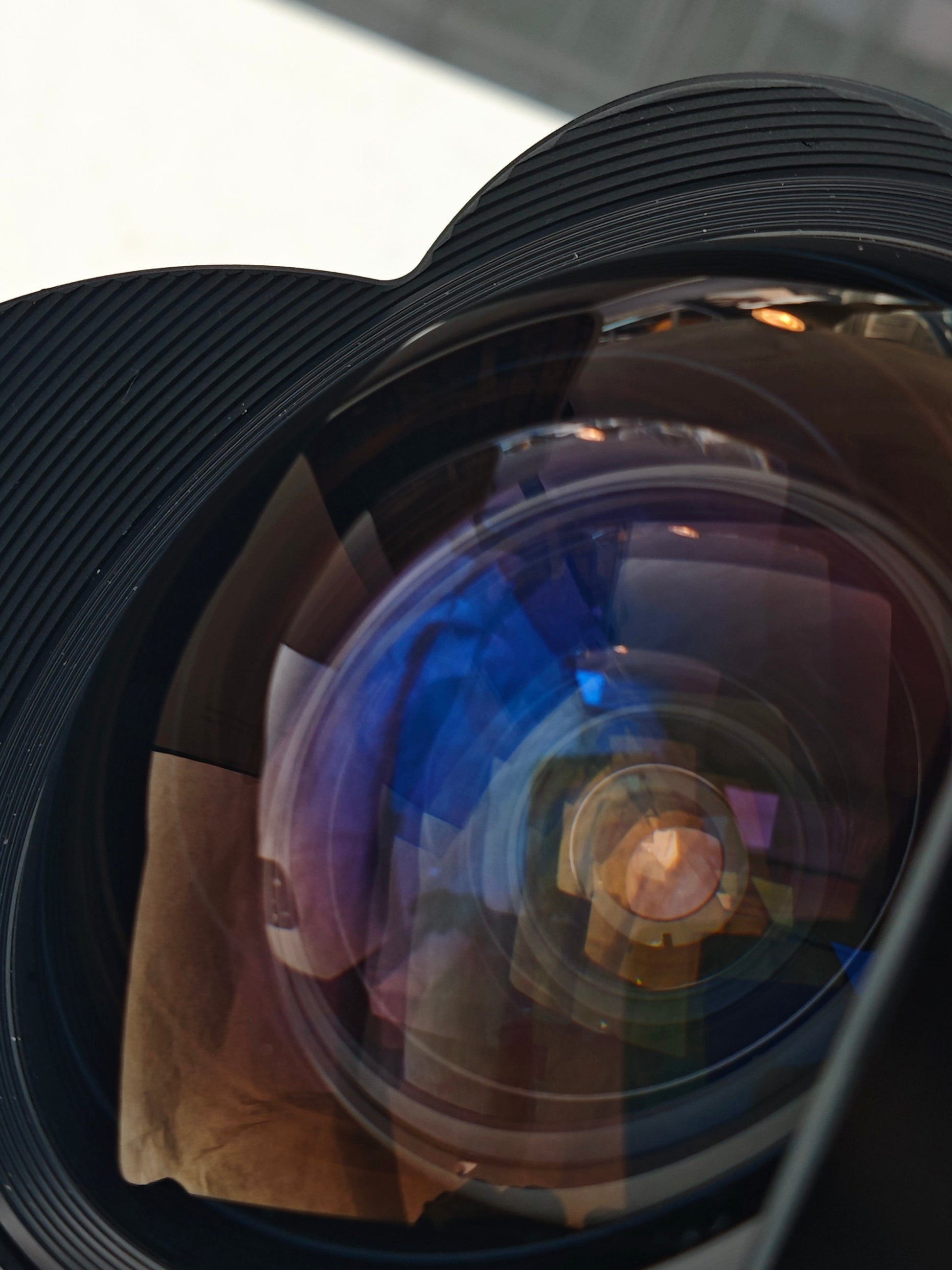

Due to its large, bulbous front element, the lens cannot accept conventional screw-in front filters; instead, it provides a rear gelatin filter holder for creative or protective filtering.

While this original version is known for its solid build and distinctive rendering, it was later succeeded by the EF 14mm f/2.8L II USM, which offered improvements in sharpness, coatings, and weather sealing.

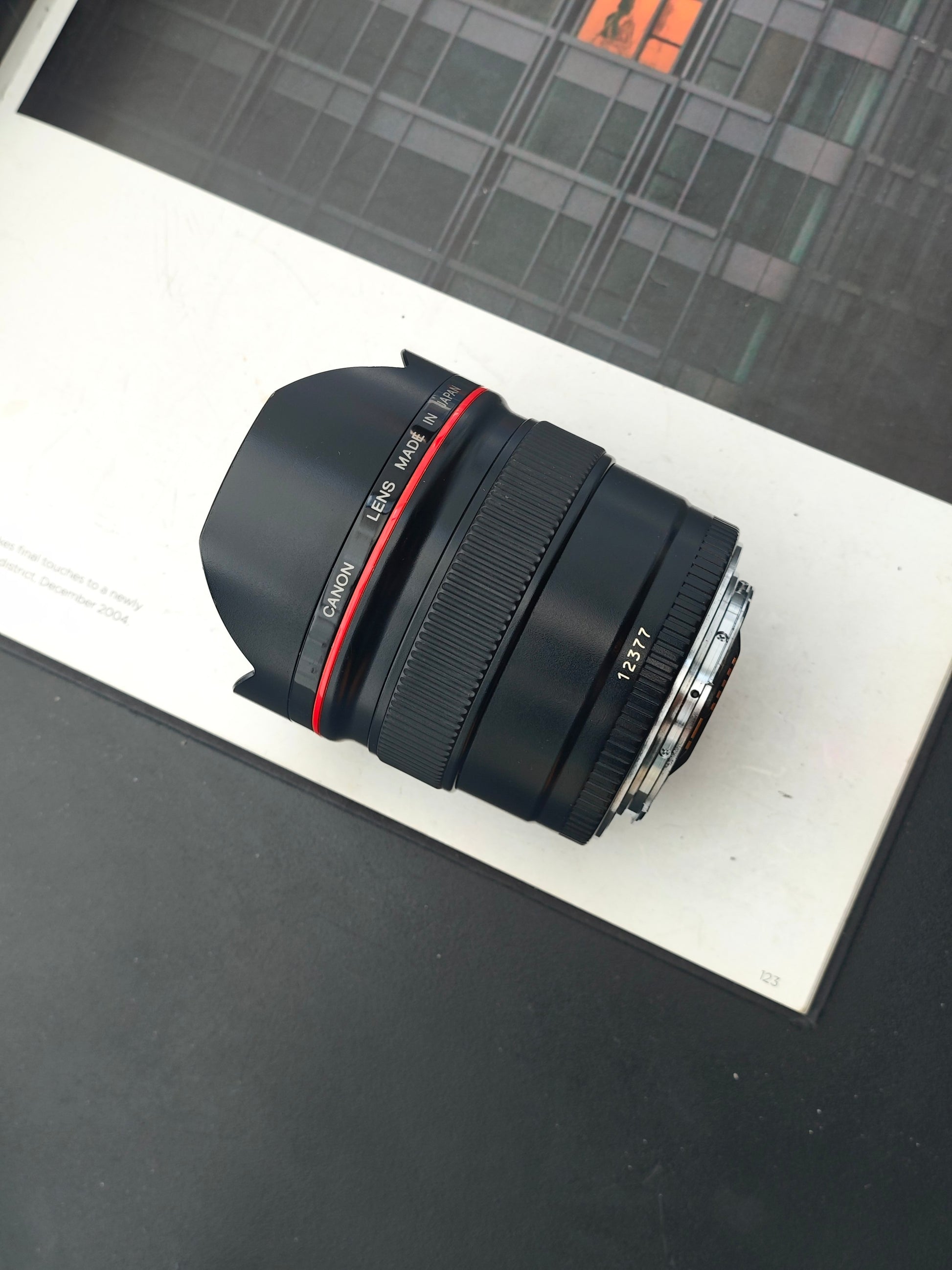

Serial Number: 12377
SKU: UN-95-7444

Condition:
- Lens is fully functional

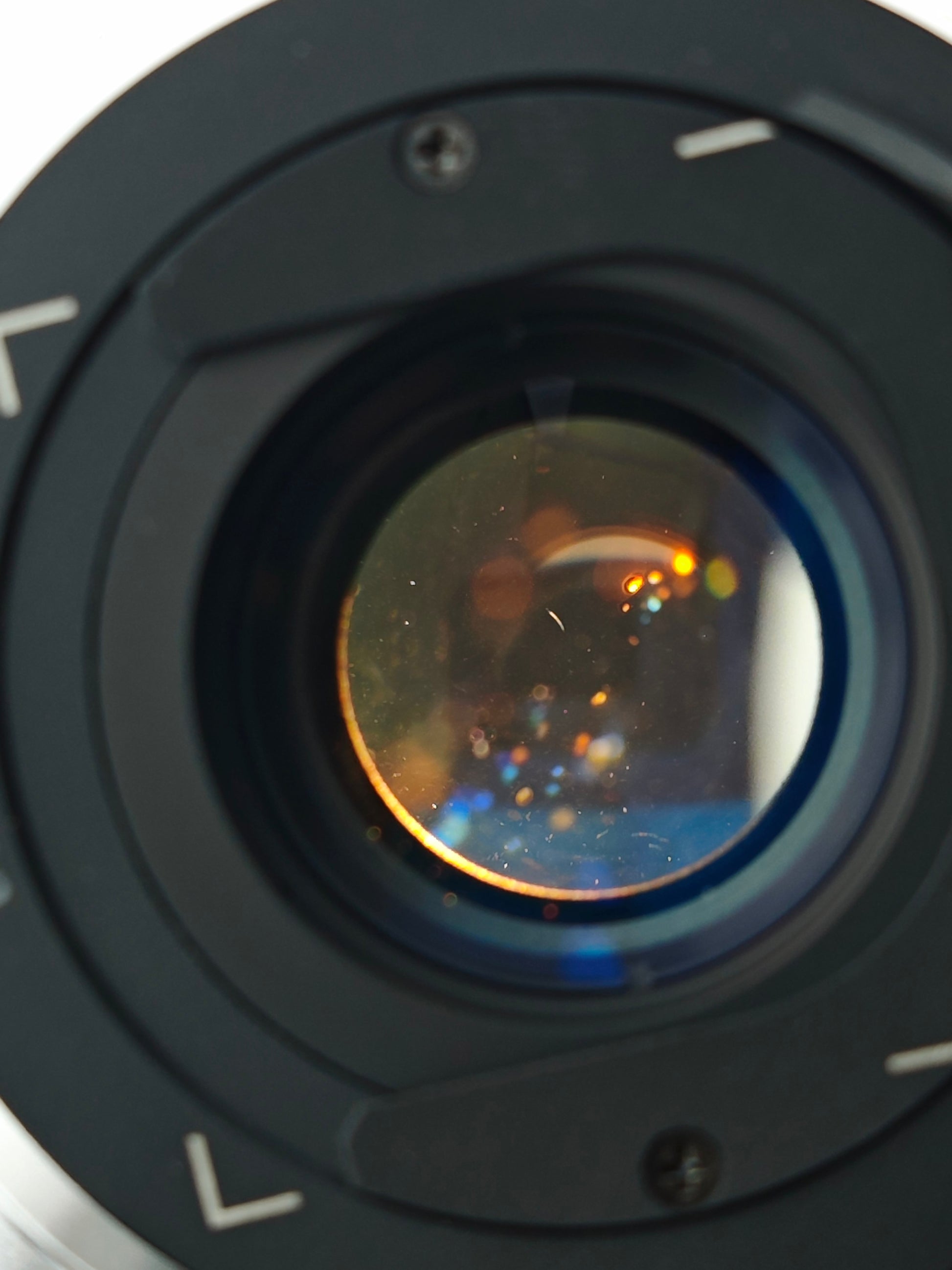

- Lens has slight haze, which does not affect image quality; no fungus; minor dust
- Lens body shows minor scratches

- เลนส์ใช้งานได้ปกติ
- เลนส์ มีฝ้าบางๆไม่ทีผลต่อภาพ ไม่มีรา มีฝุ่นเล็กน้อย
- สภาพตัวเลนส์ มีรอยขีดข่วนเล็กน้อย
